BERTHS
| Title | Document |
| Berthing Programme Dt. 06-01-2025 | View / Download |
| Berthing Programme Dt. 05-01-2025 | View / Download |
| Berthing Programme Dt. 04-01-2025 | View / Download |

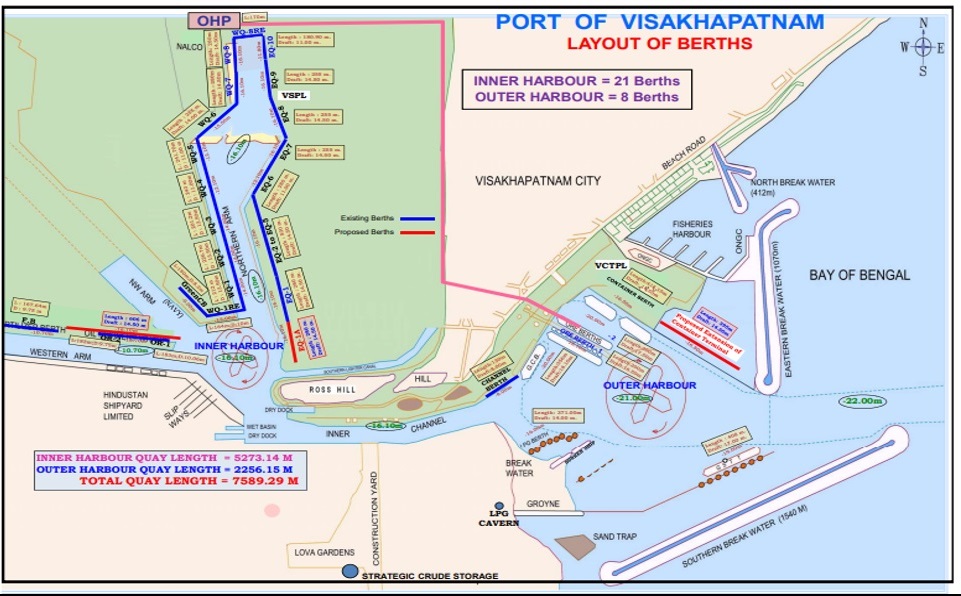

BERTH PARTICULARS AS ON 31-03-2024INNER Harbour - East Quay Berths Latest Restrictions & allowable drafts of the vessels in Inner and Outer Harbour | ||||||
SI. NO. |
BERTH |
Permissible LOA (M) |
Permissible DRAFT (M) |
YEAR OF COMISSION |
CARGO |
EQUIPMENT |
| 1. | EQ1 | 240.00 | 14.50 | 2015 |
| 1 NO. 100 T HMC |
|
2. |
240.00 |
14.50 |
2019 |
|
Work
order issued for installation of 1 no 100T(MHC) MOBILE
HARBOUR CRANE |
|
|
3. |
240.00 |
11.00 |
1966 |
|
4 Nos. 2OT Capacity Electric wharf Cranes |
|
|
4. |
240.00 |
14.50 |
1995 |
|
1
no. 14OT HMC |
|
| 5. | EQ8 (BOT) | 235.00 | 14.50 | 2005 |
| 5Nos. 100T HMC |
| 6. | EQ9 (BOT) | 235.00 | 14.50 | 2005 |
| - " - |
| 7. | EQ10 (DBFOT) | 160.00 | 11.00 | 2015 |
| Unloading arms of 300TPH |
|
INNER
Harbour - West Quay Berths
|
||||||
|
8. |
240.00 |
13.50 |
1994 |
|
2 no. 140T HMC’s are operational from WQ1 to WQ3
berths. |
|
|
9. |
240.00 |
13.50 |
1992 |
|
||
|
10. |
240.00 |
13.50 |
1992 |
|
||
|
11. |
240.00 |
11.50 |
1965 |
|
Bulk cargos are being handled with ship
cranes Caustic Soda is handled through under ground
pipeline |
|
|
12. |
240.00 |
11.50 |
1965 |
|
Conveyor System for loading alumina (2200TPH) and Caustic Soda (600TPH) |
|
|
13. |
230.00 |
14.50 |
2015 |
|
2 Nos. 60T capacity Rail Mounted level luffing
cranes. |
|
|
14.
|
240.00
|
14.50
|
2018
|
|
1 no 100 T HMC is operational at WQ7
& WQ8 berths. (Mechanization is in progress) Another 100T HMC shall be
deployed by June 2021
|
|
|
15.
|
240.00
|
14.50
|
2018
|
|
||
|
>INNER
Harbour - Western Arm
|
||||||
|
16.
|
200.00 |
10.06
|
1967
|
|
Direct discharge through pipeline to
tank farms.
|
|
|
17.
|
195.00
|
11.00 |
1957
|
|
Direct discharge through pipeline to
tank farms.
|
|
|
18.
|
185.00
|
9.75 |
1957
|
|
Direct discharge through pipeline to
tank farms.
|
|
19. |
OR-III |
160.00 |
11.00 |
2021 |
|
Direct discharge through pipeline to tank farms. |
|
OUTER Harbour |
||||||
|
20. |
280.00 |
17.00 |
1985 |
|
Three unloading arms with discharge
capacity of 5500 tonnes per hour |
|
|
21. |
230.00 |
14.00 |
1998 |
|
Marine uploading arms, Pipelines and
Direct |
|
| 22. | OB-1&2 (DBFOT) | 300.00 | 16.50 | 2015 |
| fully mechanised Iron Ore terminal |
| 23. | CRUISE TERMINAL | 300.00 | 8.50 | 2023 |
| A world-class terminal featuring luxurious amenities, access to public transportation, and close proximity to attractions like Gardens, Hill Stations, Temples etc. |
| 24. | VGCB (DBFOT) | 300.00 | 18.10 | 2013 |
| fully mechanised Coal terminal |
| 25. | VCTPL-1&2 (BOT) | 390.00 | 16.00 | 2003 |
| 7 Nos. 19Nos. RTGCS 5Nos. Reach Stackers |
| 26. | VCTPL-3&4 (DBFOT) | 390.00 | 16.00 | 2022 |
| 7 Nos. 19Nos. RTGCS 5Nos. Reach Stackers |
